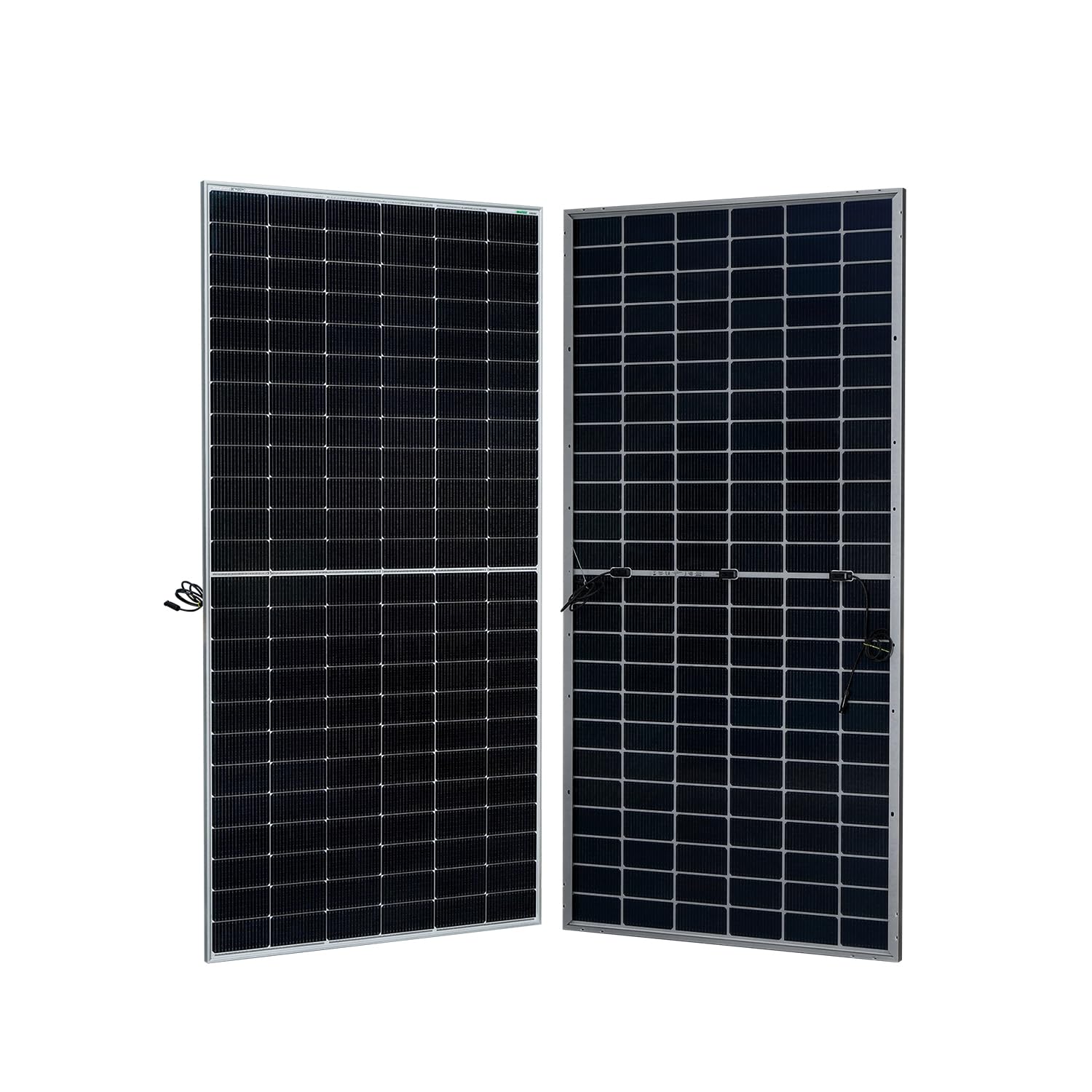

Waaree ELITE SERIES 595W TOPCon Bifacial Solar Panel – N-Type – 30 Year Warranty

Waaree ELITE SERIES 595W TOPCon Bifacial Solar Panel – N-Type – 30 Year Warranty

SKU: BiN-08-595
Sale priceRs. 9,282.00
DCR Compliance: Non-DCR

The Waaree ELITE SERIES BiN-08 N-Type TOPCon Bifacial Solar Panels deliver industry-leading efficiency, minimal degradation, and superior performance even under challenging conditions. Built with advanced N-Type Tunnel Oxide Passivated Contact (TOPCon) technology, these modules eliminate LID (Light-Induced Degradation) and offer outstanding low-light and high-temperature performance. The bifacial design captures sunlight from both the front and rear, generating up to 30% more energy depending on installation and site conditions. Featuring dual glass construction and MBB (Multi-Busbar) technology, the ELITE SERIES ensures unmatched durability and long-term reliability for utility, commercial, and premium residential projects.

Key Features

  • High Efficiency: Up to 23.23% front-side module efficiency.

  • N-Type TOPCon Cells: Zero LID and better output in low light and high temperatures.

  • Bifacial Power Gain: Up to 30% additional yield from rear-side generation.

  • Dual Glass Design: Enhanced strength, PID resistance, and weather protection.

  • Robust Build: 5400 Pa snow load / 2400 Pa wind load.

  • Long-Term Reliability: 30-year performance warranty with ≤ 0.30% annual degradation.

  • MBB Technology: Reduces resistive losses and improves performance under shading.

  • Weather Resistant: IP68-rated junction box and connectors.

Performance & Electrical Data (STC)

Model Pmax (W) Vmpp (V) Impp (A) Voc (V) Isc (A) Module Efficiency (%)
BiN-08-560 560 43.41 12.90 51.70 13.69 21.68
BiN-08-565 565 43.56 12.97 51.90 13.75 21.87
BiN-08-570 570 43.71 13.04 52.10 13.81 22.07
BiN-08-575 575 43.86 13.11 52.30 13.87 22.26
BiN-08-580 580 44.01 13.18 52.50 13.93 22.45
BiN-08-585 585 44.15 13.25 52.70 13.99 22.65
BiN-08-590 590 44.29 13.32 52.90 14.05 22.84
BiN-08-595 595 44.44 13.39 53.10 14.11 23.03
BiN-08-600 600 44.61 13.45 53.30 14.17 23.23

Mechanical Data

  • Dimensions: 2278 × 1134 × 33 mm

  • Weight: 32.5 kg

  • Cell Type: M10/M10R N-Type Bifacial, 144 half-cut cells

  • Front Glass: 2 mm low-iron HTAR-coated, semi-tempered

  • Back Glass: 2 mm low-iron printed, semi-tempered

  • Cable Length: 500 mm, MC4 compatible

  • Frame: Anodized aluminum alloy

Operating Conditions

  • Maximum System Voltage: 1500 V

  • Operating Temperature: -40°C to +85°C

  • NOCT: 43 ± 2°C

  • Temperature Coefficients:
      Voc: -0.26 %/°C
      Isc: +0.046 %/°C
      Pmax: -0.30 %/°C

  • Bifaciality Factor: 80 ± 10%

Certifications
IEC 61215, IEC 61730, IEC 61701, UL 1703, IEC 62716, IEC 62782, BIS.

Warranty

  • Product Warranty: 12 years

  • Performance Warranty: 30 years
      • ≤ 1% degradation in first year
      • ≤ 0.30% degradation per year from year 2 to year 30
