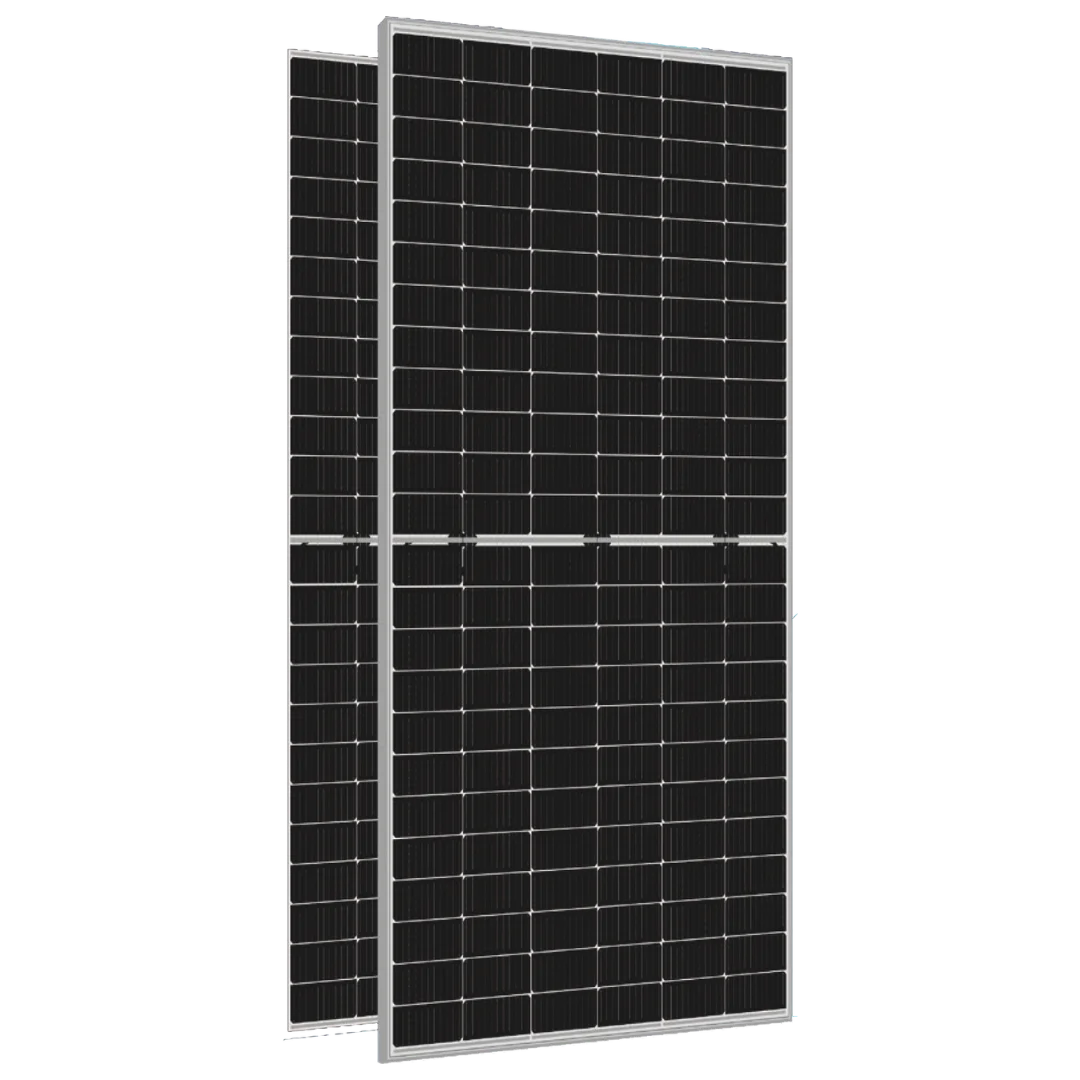

Adani ELAN SHINE 520W Mono PERC Bifacial Solar Panel – MBB Half-Cut – 30 Year Warranty

Adani ELAN SHINE 520W Mono PERC Bifacial Solar Panel – MBB Half-Cut – 30 Year Warranty

SKU: ASB-M10-144-520
Sale priceRs. 7,748.00
DCR Compliance: Non-DCR

The Adani ELAN SHINE 520W Mono PERC Bifacial Solar Panel delivers exceptional power output, advanced cell technology, and long-term performance guarantees. Built with high-efficiency monocrystalline PERC half-cut cells and multi-busbar (MBB) technology, this panel is engineered for superior durability, micro-crack resistance, and consistent energy yield even in challenging conditions. Its bifacial design captures sunlight from both the front and rear surfaces, increasing overall energy generation by up to 15%.

Key Features

  • High Efficiency: 20.22% module efficiency for maximum power generation per square meter.

  • Bifacial Power Gain: Up to 15% extra yield from rear side exposure.

  • MBB (Multi-Busbar) Technology: Enhances current collection, reduces electrical losses, and improves shading tolerance.

  • Mono PERC Half-Cut Cells: Boosts performance in low-light and high-temperature environments.

  • Durability: Rated for 5400 Pa front load and 2400 Pa back load.

  • Long-Term Reliability: 30-year linear performance warranty with only 0.45% annual degradation after the first year.

  • Reduced LID & LeTID: Gallium-doped wafers ensure minimal light-induced and temperature-induced degradation.

  • Weather Resistant: Certified for salt mist, ammonia, sand, and dust corrosion resistance.

  • Safety: IP68-rated junction box for maximum water and dust protection.

Performance & Electrical Data (STC Conditions)

  • Maximum Power (Pmax): 520 W

  • Module Efficiency: 20.22%

  • Maximum Power Voltage (Vmpp): 41.19 V

  • Maximum Power Current (Impp): 12.65 A

  • Open Circuit Voltage (Voc): 48.18 V

  • Short Circuit Current (Isc): 13.54 A

  • Power Tolerance: 0 ~ +4.99 Wp

  • Bifaciality Factor: Up to 70 ± 5%

  • Bifacial Gain: Up to 600 Wp at 15% gain

Mechanical Data

  • Dimensions: 2266 × 1135 × 35 mm

  • Weight: 33.5 kg

  • Cell Type: 144 Half-Cut Mono PERC Bifacial Cells

  • Glass: 2.0 mm high transmission, ARC-coated, heat strengthened

  • Frame: Anodized aluminum alloy

  • Junction Box: IP68 rated, MC4 compatible

  • Cable Length: 300 mm, MC4 & Amphenol compatible connectors

Operating Conditions

  • Maximum System Voltage: 1500 V (IEC & UL)

  • Operating Temperature: -40°C to +85°C

  • Nominal Operating Cell Temperature (NOCT): 44°C ± 2°C

  • Temperature Coefficient of Pmax: -0.35 %/°C

  • Temperature Coefficient of Voc: -0.29 %/°C

  • Temperature Coefficient of Isc: +0.045 %/°C

Certifications
IEC 61215 Ed2, IEC 61730, IEC 61701, UL 1703, MCS, JET, CEC, CEC-Aus, IEC 62716, IEC 62782, IEC 60068-2-68, IEC 61853, BIS.

Warranty

  • Product Warranty: 12 years

  • Performance Warranty: 30 years
      • ≤ 2.0% degradation in first year
      • ≤ 0.55% degradation per year from year 2 to year 30
